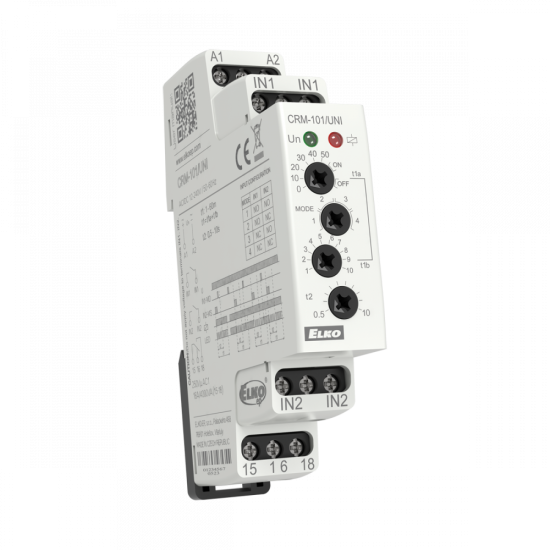

CRM-101
CRM-101
Energy Saving Time Relay
Multifunctional Time Relay
Manufacturer: ELKO EP
Ord. code: 8132 standard
EAN: 8595188181327
New
Price excl. VAT £ 37,00
Your price:
£ 44.40
incl. VAT
Description
CRM-101 | Energy Saving Time Relay
- Time relay for automatic switching ON and OFF of electricity in hotel rooms, with the help of connected sensors (replacement of common card switches).
- 2 control inputs - potential-free contacts:
IN1 (MD) - motion detector
IN2 (MC) - magnetic door contact - Adjustable configuration of control inputs - NO - normally open / NC - normally closed, according to the type of connected sensors).
- Time delay t1 (delayed switch-off of electricity) - Adjustable in the range of 1 - 60 min in minute steps.
- Time delay t2 (input blocking for motion detector) - Adjustable continuously in the range 0.5 - 10 s.
- The multifunction red LED flashes or lights up depending on the operating status.
More information:
- Voltage range: AC/DC 12 - 240 V (AC 50 - 60 Hz)
- Power input (max.): 2 VA / 1.5W
- Number of contacts: 1x changeover / SPDT 16 A (AgNi)
- Mounting: DIN rail EN 60715
- Supply indication: input - green LED, output - red LED
- Protection degree: IP40 from front panel / IP20 terminals
- Dimensions: 90 x 17.6 x 64 mm (3.5 x 0.7 x 2.5 inch)
- Weight: 70 g (2.5 oz)
Documents
Parameters
Power voltage | 12-240 V AC/DC (UNI) |
---|---|
Settings | Rotary switches |
Design | 1-MODULE |
Output contact | 1 x changeover 16 A |
