Description

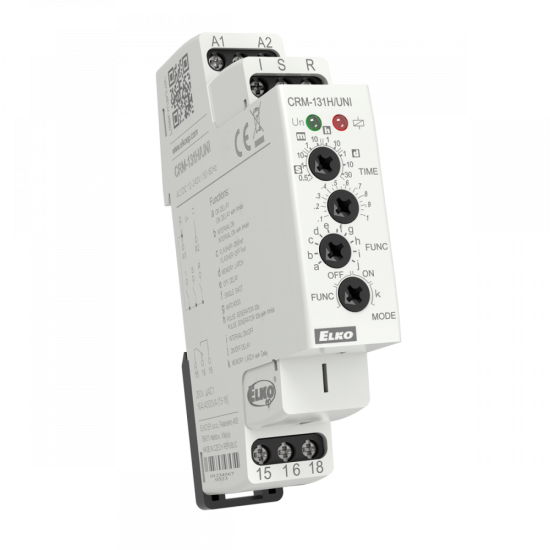

CRM-131H/UNI | Multifunction time relay with three control inputs

  •  Multifunction time relay for universal use in automation, control and regulation or in-house installations.
  • Three control inputs - START, INHIBIT, RESET.
  • Mode selection - according to the set function, permanently closed, permanently open, function of MEMORY LATCH with delay.
  • Multifunction red LED flashes or shines depending on the operating status.


More information

  • Voltage range: AC/DC 12 - 240 V (AC 50 - 60 Hz)
  • Maximum consumption: 2 VA / 1.5W
  • Number of functions: 11
  • Output contact: 1x changeover / SPDT 16 A (AgNi)
  • Mounting: DIN rail EN 60715
  • LED indication: power supply - green, output - red
  • Protection degree: IP40 from front panel / IP10 terminals
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
  • Weight: 61 g (2.2 oz)
