Description

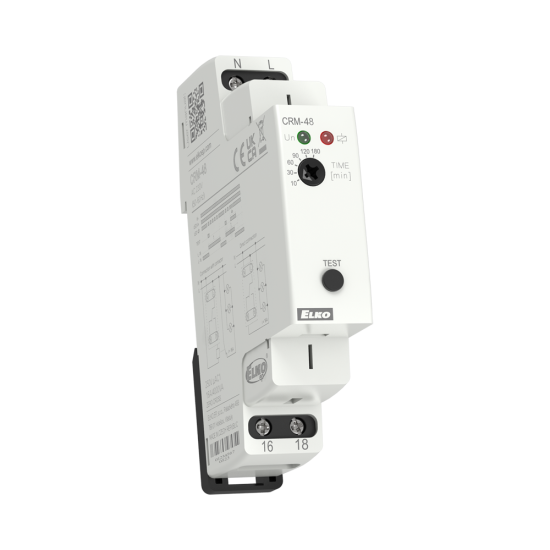

CRM-48 | Emergency light tester

  • Time relay for automatic testing of emergency lighting.
  • Panel button for starting the test.
  • Comfortable and well-arranged time delay (t) setting by rotary switch.
  • Adjustable time delay 10 m – 30 m – 60 m – 90 m – 120 m – 180 m is divided into six ranges.
  • ZERO CROSS feature: closes and opens the output contacts when the voltage crosses zero.
  • Multifunction red LED flashes or shines depending on the operating state.

Další informace

  • Output: 1x changeover, 16 A
  • Housing: 1-MODULE
  • Supply voltage (frequency): AC 230 V (50/60 Hz)
  • Time delay: 10 m – 30 m – 60 m – 90 m – 120 m – 180 m
  • Number of functions: 1
  • Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)

Documents

Parameters

Functions Staircase automat
Power voltage 230 V AC
Design 1-MODULE
Output contact 1 x changeover 16 A
