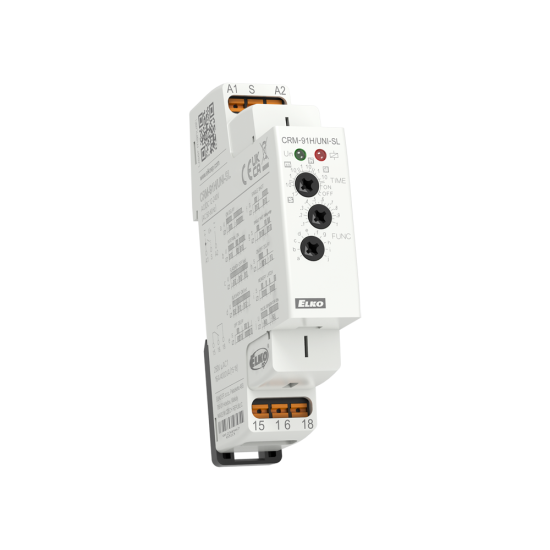

CRM-91H-SL
CRM-91H-SL
Multifunction time relay (screw-less)
Manufacturer: ELKO EP
Ord. code: 8481 standard
EAN: 8595188184816
Availability: More than 10 pcs
Price excl. VAT £ 43,36
Your price:
£ 52.03
incl. VAT
Description
CRM-91-SL | Multifunction time relay (screw-less)
- Multifunction time relay for universal use in automation, control and regulation or in house installations
- Universal supply voltage AC/DC 12 – 240V
- Easy connection with screw-less terminals
- Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1 s - 10 days divided into 10 ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 h - 10 hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF) - Output contact:
CRM-91H-SL: 1x changeover / SPDT 16A
CRM-93H-SL: 1x changeover / SPDT 16A, 2x changeover / DPDT 8A - Multifunction red LED flashes or shines depending on the operating states
More information
- Output: 1x changeover 16 A
- Housing: 1-MODULE
- Supply voltage (frequency): AC/DC 12-240 V
- Time range: 0.1 s - 10 days (10 ranges)
- Number of functions:10
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
Documents
Parameters
Time range | 0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h, 0.1 - 1 day, 1 - 10 days |
---|---|
Functions | ZR - delayed start, ZN - delayed return, Delayed return after pulse off, Symmetrical cycler starting with a space, Symmetrical cycler starting with an impulse, Staircase automat, Impulse shift, Memory (pulse) relay, Pulse generator |
Settings | Rotary switches |
Design | 1-MODULE |
Output contact | 1 x changeover 8 A |
