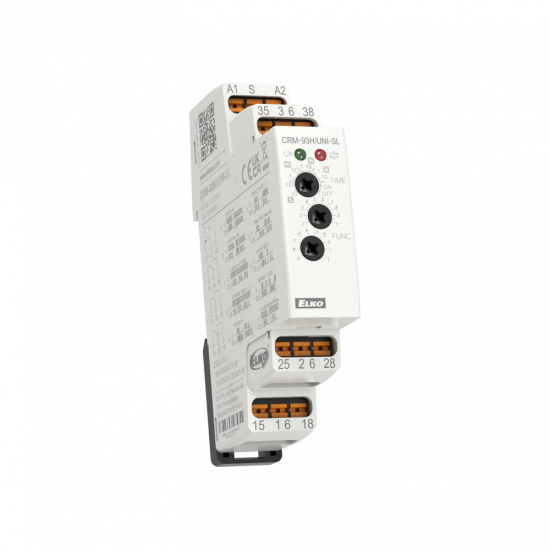

CRM-93H-SL
CRM-93H-SL
Multifunction time relay (screw-less)
Manufacturer: ELKO EP
Ord. code: 8482 standard
EAN: 8595188184823
Price excl. VAT £ 49,50
Your price:
£ 59.40
incl. VAT
Description
CRM-93H-SL | Multifunction time relay (screw-less)
- Multi-function time relay for universal use in automation, control and regulation or in-house installations
- Universal supply voltage AC/DC 12 – 240V
- Easy connection with screw-less terminals
- Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1 s - 10 days divided into 10 ranges:
(0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 h / 1 h - 10 hrs / 0.1 day - 1 day / 1 day - 10 days / only ON / only OFF) - Output contact:
CRM-91H-SL: 1x changeover / SPDT 16A
CRM-93H-SL: 1x changeover / SPDT 16A, 2x changeover / DPDT 8A - Multifunction red LED flashes or shines depending on the operating state
More information:
- Výstup: 1x přepínací 16 A, 2x přepínací 8 A
- Provedení: 1-MODUL
- Napájecí napětí (frekvence): AC/DC 12-240 V (AC 50/60 Hz)
- Časový rozsah: 0.1s - 10 dní (10 rozsahů)
- Počet funkcí: 10
- Rozměry: 90 x 17.6 x 64 mm
Documents
Parameters
Time range | 0.1 - 1 s, 1 - 10 s, 6 - 60 s, 1 - 10 min, 6 - 60 min, 1 - 10 h, 0.1 - 1 day, 1 - 10 days |
---|---|
Functions | ZR - delayed start, ZN - delayed return, Delayed return after power off, Symmetrical cycler starting with a space, Symmetrical cycler starting with an impulse, Staircase automat, Impulse shift, Memory (pulse) relay, Pulse generator |
Settings | Rotary switches |
Design | 1-MODULE |
Output contact | 3 x changeover 8 A |
