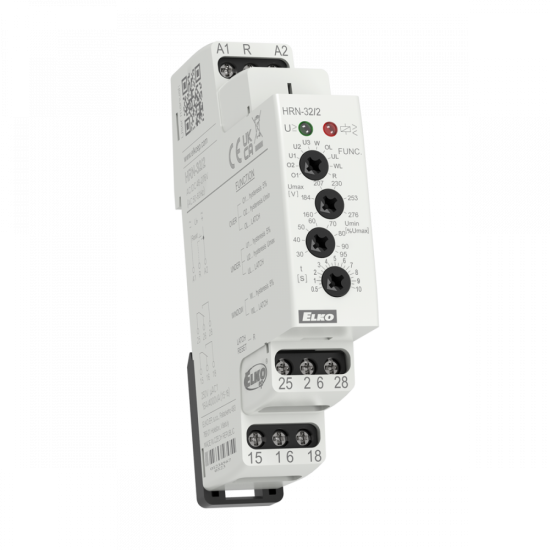

HRN-32/2
HRN-32/2
Multifunction voltage monitoring relays AC/DC
Manufacturer: ELKO EP
Ord. code: 8539 standard
EAN: 8595188185394
Price excl. VAT £ 40,00
Your price:
£ 48.40
incl. VAT
Description
HRN-32/2 | Multifunction voltage monitoring relays AC/DC
- It is used to monitor the value of alternating or direct voltage in 1-phase circuits.
- Supply voltage from monitored voltage.
- Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
- Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
- Adjustable time delay (to eliminate short-term voltage drops and spikes).
- Option to select functions with fault state memory (Latch).
- The fault state memory can be reset by the control input (R).
- Measures true root mean square value of the voltage - TRUE RMS.
- Type HRN-32/2 has an independent output contact for each voltage level.
Other parameters
- Overvoltage: Yes
- Undervoltage: Yes
- Monitored range: AC 48 - 276 V
- Output contact: 1x CO for each level, 16 A
- Housing: 1-MODULE
- Power supply: from monitored voltage
- Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
Documents
Parameters
Guarded values | > U (Overvoltage), <U (Undervoltage) |
---|---|
Power voltage | from monitored voltage |
Number of phases | 1 |
Design | 1-MODULE |
Monitored voltage range | 48 - 276 V AC |
Output contact | 2 x changeover 16 A |
