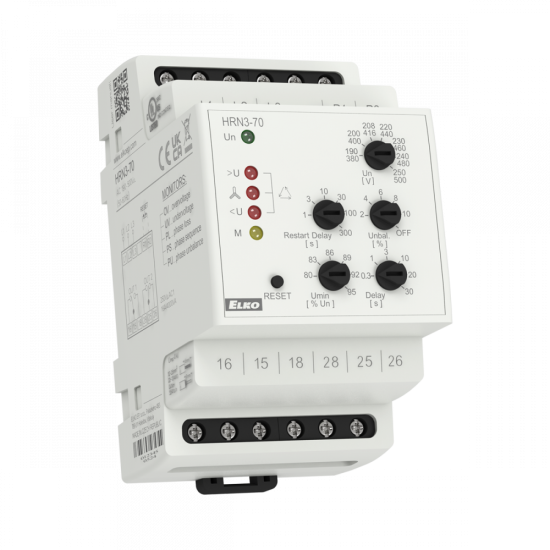

HRN3-70
HRN3-70
Voltage monitoring relays in 3P with adjustable levels
Manufacturer: ELKO EP
Ord. code: 8883 standard
EAN: 8595188188838
Price excl. VAT £ 94,50
Your price:
£ 114.35
incl. VAT
Description
HRN3-70 | Voltage monitoring relays in 3P with adjustable levels
- It is used for monitoring voltage, phase failure, sequence, and asymmetry in the 3-phase network.
- Wide range of monitored voltage with automatic selection of a low/ high range.
- Fixed overvoltage level (Umax), adjustable Undervoltage level (Umin).
- Adjustable time delay t2 (to eliminate short-term voltage drops and peaks).
- Adjustable time delay t3 (to eliminate short-term OK state).
- Adjustable asymmetry level with the option to turn it OFF.
- Measures true root mean square value of the voltage - TRUE RMS.
- Fault memory reset can be done by RESET button on the panel or by an external opening contact.
Others parameters
- Phase failure: Yes
- Phase sequence: Yes
- Adjustable overvoltage: No
- Adjustable undervoltage: Yes
- Asymmetry: Yes
- Monitored range: AC 3 x 190 - 500 V
- Output contact: 2x CO, 16 A
- Housing: 3-MODULE
- Power supply: monitored voltage
- Dimensions: 90 x 52 x 65 mm (3.5˝ x 2˝ x 2.6˝)
Documents
Parameters
Guarded values | <U (Undervoltage), Phase failure, Phases sequence, Phases asymmetry |
---|---|
Power voltage | from monitored voltage |
Number of phases | 3 |
Design | 3-MODULES |
Monitored voltage range | 3 x 190 - 500 V AC |
