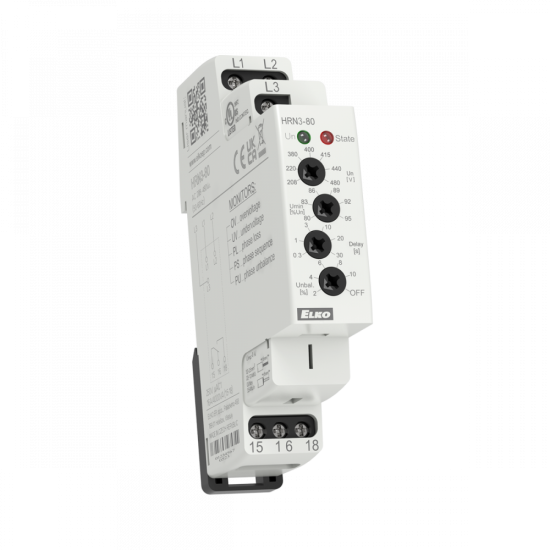

HRN3-80
HRN3-80
Voltage monitoring relays in 3P with adjustable levels
Manufacturer: ELKO EP
Ord. code: 8881 standard
EAN: 8595188188814
Price excl. VAT £ 57,98
Your price:
£ 69.58
incl. VAT
Description
HRN3-81 | Voltage monitoring relays in 3P with adjustable levels
- The relay is designed to monitor undervoltage (HRN3-80), phase loss, sequence and asymmetry in 3-phase network.
- Power supply from the monitored circuit.
- HRN3-80: Monitors the drop below the lower voltage level (Umin).
- HRN3-80: The lower level of Umin is set in % of the selected range.
- Wide range of monitored voltage 208 – 480 V.
- Adjustable time delay (to eliminate short-term voltage drops).
- Measures true root mean square value of the voltage - TRUE RMS.
- Adjustable level of asymmetry with the option to turn it off.
Technical parameters
- Monitored range: AC 3× 208 – 480 V
- Output contact: 2x CO, 16 A
- Housing: 1-MODULE
- Power supply: monitored voltage
- Dimensions: 90 x 52 x 66 mm (3.5˝ x 0.7˝ x 2.5˝)
Documents
Parameters
Guarded values | <U (Undervoltage), Phase failure, Phases sequence, Phases asymmetry |
---|---|
Power voltage | from monitored voltage |
Number of phases | 3 |
Design | 1-MODULE |
Monitored voltage range | 3 x 208 - 480 V AC |
