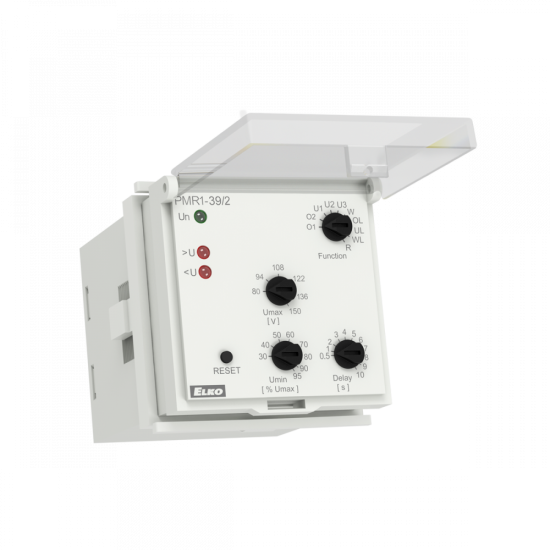

PMR1-39/2
PMR1-39/2
Multifunction voltage monitoring relay
Manufacturer: ELKO EP
Ord. code: 8869 standard
EAN: 8595188188692
Availability: More than 10 pcs
Price excl. VAT £ 67,06
Your price:
£ 80.47
incl. VAT
Description
PMR1-39/2 | Multifunction voltage monitoring relay
- It is used to monitor the value of alternating or direct voltage in 1-phase circuits.
- Supply voltage from monitored voltage.
- Monitors voltage exceeding the upper voltage level (Umax) and falling below the lower voltage level (Umin) – according to the selected function.
- Smooth adjustment of both voltage levels – the lower level Umin is set in % of the upper-level Umax.
- Adjustable time delay (to eliminate short-term voltage drops and peaks).
- Option to select functions with fault state memory (Latch).
- The fault state memory can be reset with a button on the panel (RESET).
- Measures true root mean square value of the voltage - TRUE RMS.
Others parameters
- Phase failure: No
- Phase sequence: No
- Overvoltage: Yes
- Undervoltage: Yes
- Asymmetry: No
- Monitored range: AC/DC 24 - 150 V
- Supply voltage: 2x CO, 16 A
- Housing: 8-PIN
- Power supply: from monitored voltage
- Dimensions: 48 × 48 × 79 mm (1.89˝ × 1.89˝ × 3.11˝)
Documents
Parameters
Guarded values | > U (Overvoltage), <U (Undervoltage) |
---|---|
Power voltage | from monitored voltage |
Number of phases | 1 |
Design | TO THE SOCKET |
Monitored voltage range | 24 - 150 V AC/DC |
Output contact | 2 x changeover 16 A |
