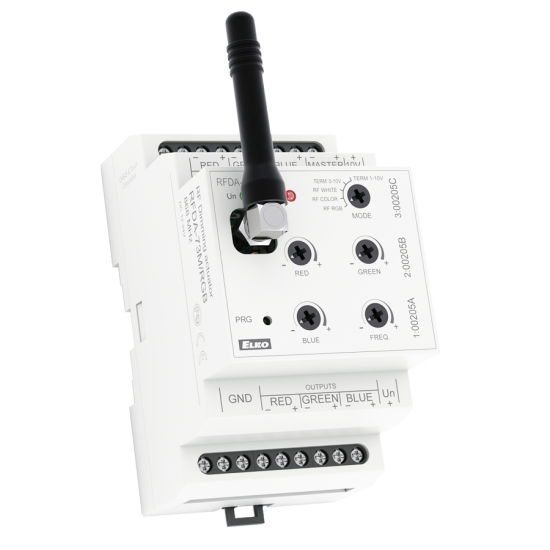

RFDA-73M/RGB | Dimming actuator

• The dimmer for LED strips is used for independent control of 3 single-color LED strips or one RGB LED strip.
• The expanded selection of control modes enables it to be combined with: a) Detectors, Controllers, and System units iNELS RF Control b) control signal 0(1)-10V c) connecting to iNELS BUS using DAC converters.
• The unit‘s three-module design with switchboard mounting enables connection of dimmed load 3x 5A, which represents:
  • single-color LED strip 7.2W (ELKO Lighting) – 3x 8m
  • RGB LED strip 14.2W (ELKO Lighting) – 1m.
• 6 light functions - smooth increase or decrease with time setting 2s-30 min.
• When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
• The dimmer may be controlled by up to 32 channels (1 channel represents 1 button on the controller).
• The power supply of the unit is in the range of 12-24V DC and is indicated by a green LED.
• The package includes an internal antenna AN-I, in case of locating the unit in a metal switchboard, you can use the external antenna AN-E for better signal reception.
• Memory status can be pre-set in the event of a power failure.
• For components, it is possible to set the repeater function via the RFAF / USB service device.
• Range up to 160 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
• Communication frequency with bidirectional protocol iNELS RF Control² (RFIO² ).

Technical parameters

• Power terminals: Un +, GND
• Supply voltage: 12-24V DC stabilized
• Dimmable load: LED strip 12V, 24V with standard anode; RGB LED strip 12V, 24V with a standard anode
• RF command from the controller: 866MHz, 868MHz, 916MHz
• Range in open space: up to 160m
• Mounting: DIN rail EN 60715
• Protection: IP 20 from the front panel
• Dimensions: 90 x 52 x 65mm
• Weight: 130g
