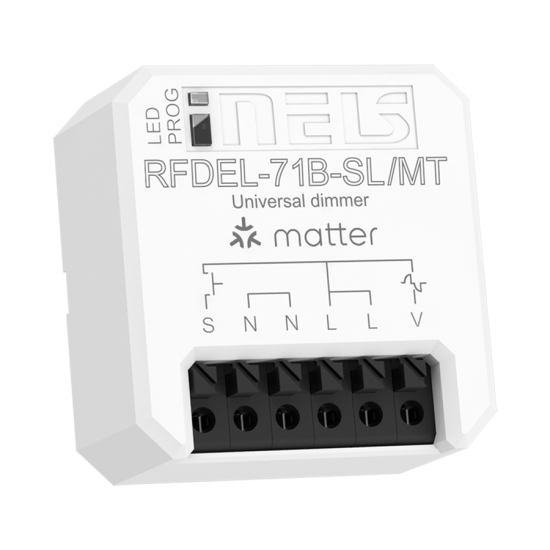

RFDEL-71B-SL/MT | Universal dimmer MATTER

• Universal built-in dimmer is used to regulate light sources:
  • R – classic light bulbs,
  • L – halogen bulbs with wound transformer,
  • C – halogen bulbs with electronic transformer,
  • ESL – dimmable energy-saving lamps,
  • LED – LED light sources (230 V).
• The Thread protocol guarantees compatibility with other products with the Matter support.
• Control input “S” for connection of the existing wired pushbutton.
• The programming pushbutton on the element can also be used as manual control of the output.
• The applicable reach is up to 200m (in free area).
• The BOX design offers installation directly in the junction box, soffit, or cover of the light fitting.
• The element with the controller can be paired through a border router supporting Matter and through an application supporting Matter. The border router is understood as equipment such as HomePod Mini, Google Nest Hub or Samsung SmartThings Station.

Technical parameters

• Supply voltage (frequency): AC 230 V (50-60 Hz)
• Design: BOX + screwless terminals
• Dimensions: 43 x 44 x 22 mm
• Application protocol: Matter
• Communication protocol: THREAD
