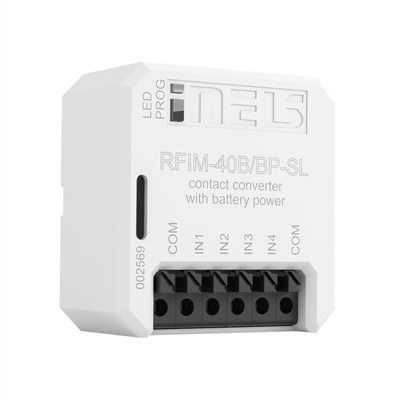

RFIM-40B/BP-SL
RFIM-40B/BP-SL
Manufacturer: ELKO EP
Ord. code: 8406
EAN: 8595188184069
Price excl. VAT £ 47,50
Your price:
£ 57
incl. VAT
Description
RFIM-40B/BP-SL | Input contact converter
- RFIM-40/BP-SL: this wireless converter of the contact changes the wired pushbutton/switch to a wireless one.
- 4 inputs enable mutually independent control of 4 elements.
- battery power supply (3V/CR123A – included in the packing) with a lifespan of approx. 8 years, depending on the frequency of use.
- the contract may be closed permanently.
- RFIM-40B/230-SL: this converter of the contact changes the pushbutton/switch with the local commercial power supply to a wireless one.
- 4 inputs enable mutually independent control of 4 elements.
- power supply from the network; the inputs respond to the activation of the commercial power supply.
- It can be used for the transmission of information about the closing of contact (of a detector, pushbutton, technology, or logic output).
- After pressing the pushbutton the preset command (ON/OFF, dimming, timed switching off/on, pulling the blinds up/down) is sent.
- Optional setting of scenes, where one pressing of a pushbutton controls more iNELS RF Control elements.
- Reach up to 200m (in open space); in case of insufficient signal strength between the controller and elements, a signal repeater type RFRP-20 can be used, or use the elements with the RFIO2 protocol that support this function.
- Communication frequency with the RFIO two-way protocol.
- The BOX design offers installation directly in an installation box under a pushbutton/switch.
Documents
manual_rfim-40b-sl.pdf (pdf, 538.5 kB)
Datasheet_RFIM-40B-BP-SL_RFIM-40B-230-SL.pdf (pdf, 132.4 kB)
