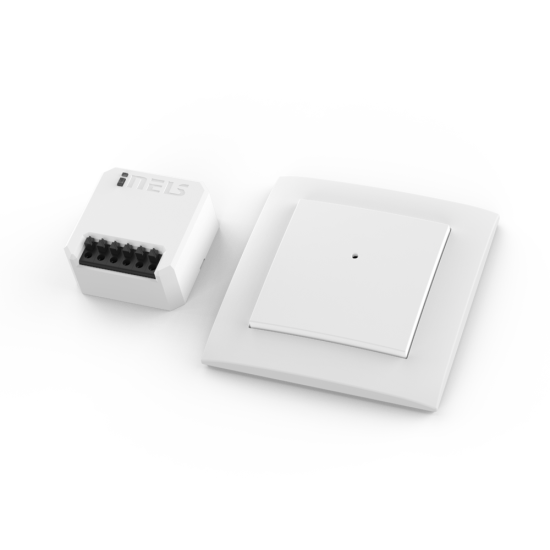

Combination of iNELS wall switching element and wireless switch for universal use. It is used to control electrical appliances, lights, sockets, garage doors, etc.
KIT CONTENTS:

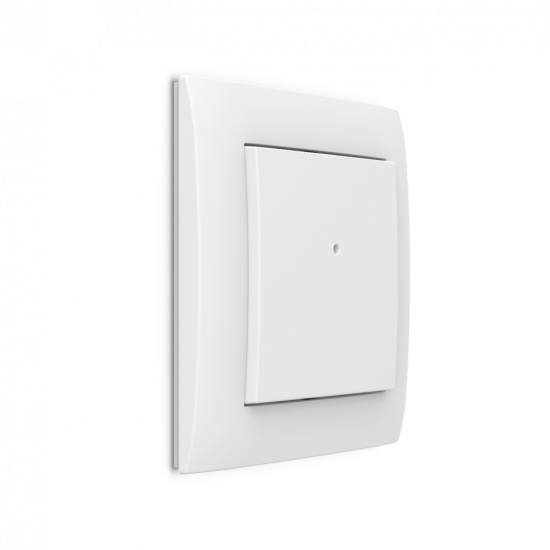

RFWB-20/G | Wireless wall controller
The wireless controller is used to control switches and dimmers (lights, gate, garage door, blinds, etc.).
RFWB-20/G: two buttons enable control of two units independently.
The flat design with a level base makes it ideal for fast installation on any surface (fixation with adhesive or screws in the installation box).
When pressing the button, it sends a set signal (ON / OFF, dimming, time switching OFF / ON, blinds up / down).
Sending a command is indicated by a red LED.
In LOGUS90 switch frame design (plastic, glass, wood, metal, stone).

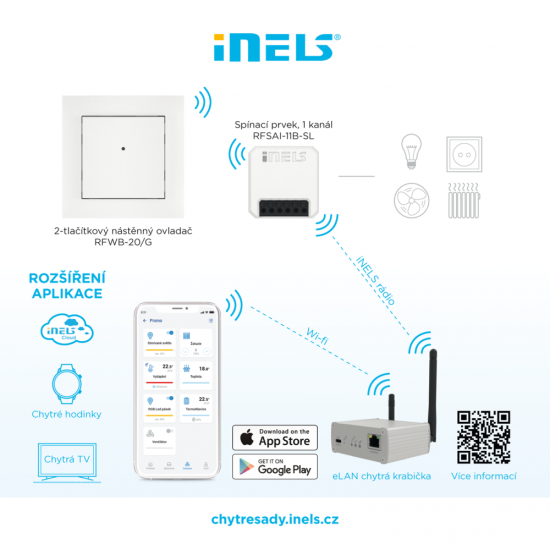

Option of setting light scenes, where with a single press, you can control units of iNELS RF Control.
Battery power supply (3V/CR2032 - included in the supply) with a battery life of around 5 years based on the frequency of use.
Range up to 200 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
Communication frequency with bidirectional protocol iNELS RF Control.
Switching components with 1 relay output are used to control appliances and lights. Internal terminals can connect two existing buttons in the wiring.
They can be combined with detectors, controllers, iNELS RF Control, or system components...
The BOX design lets you mount it right in an installation box, a ceiling, or a controlled appliance cover.
It allows the connection of switched loads with a total sum of 8 A (2,000 W).
Function: button, impulse relay, and time function of a delayed start or return with time setting range of 2s-60min. It is possible to assign any function to each output relay.
The external button is programmed as a wireless button.
Each output can be controlled by up to 12/12 channels (1 channel represents 1 button on the controller).
The programming button on the unit is also used for manual control of the output.
Memory status can be pre-set in the event of a power failure.
For components labeled as iNELS RF Control2 (RFIO2), it is possible to set the repeater function via the RFAF/USB service device.
Range up to 200 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
